Ford Ranger PX2 / PX3 / Everest UA / Mazda BT-50 UR Duratorq / P4AT 2.2L (SU-001) Turbo Actuator
Ford Ranger PX2 / PX3 / Everest UA / Mazda BT-50 UR Duratorq / P4AT 2.2L (SU-001) Turbo Actuator
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability

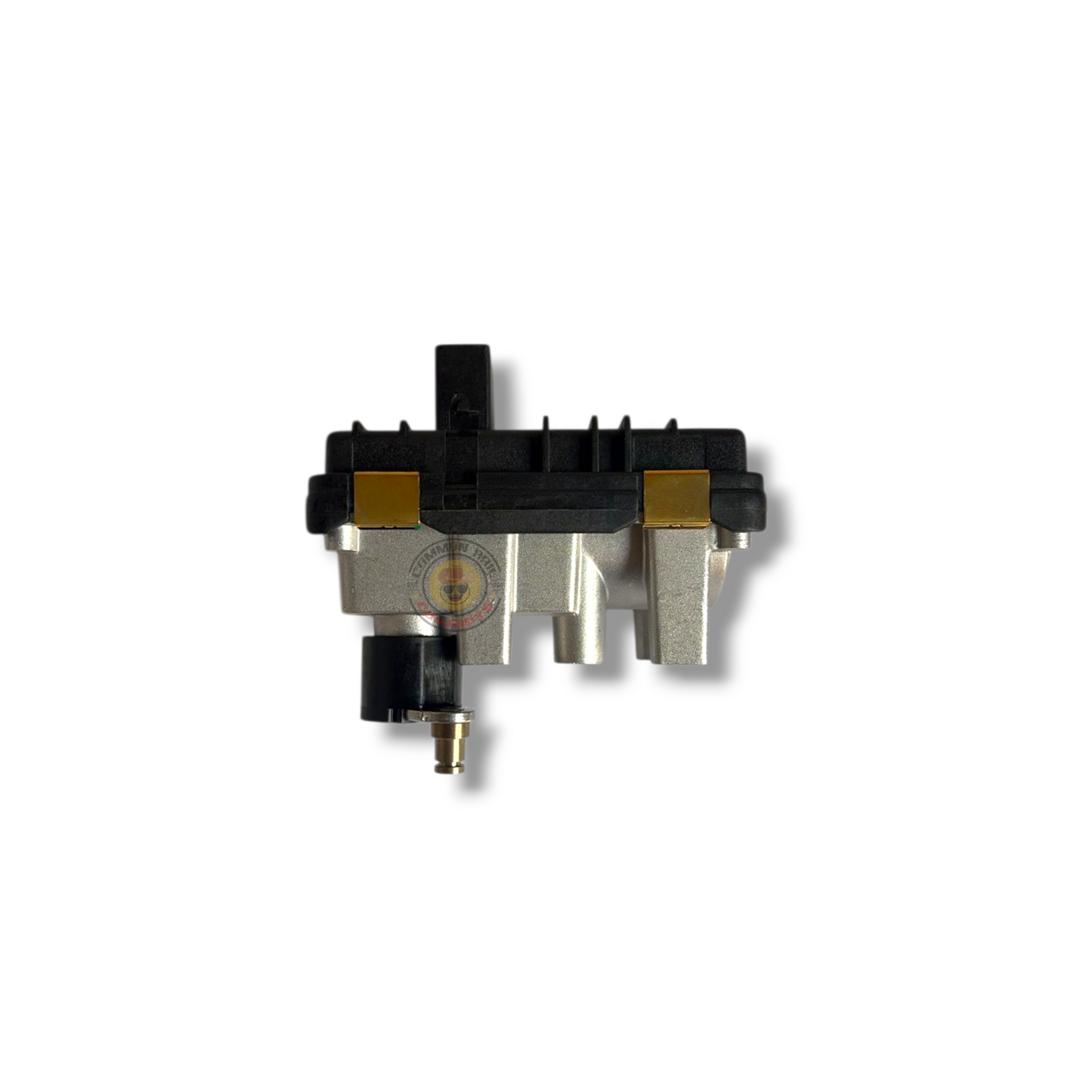

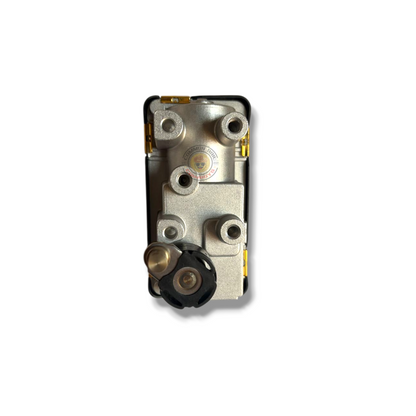

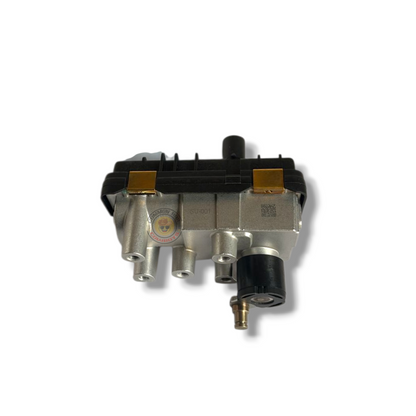

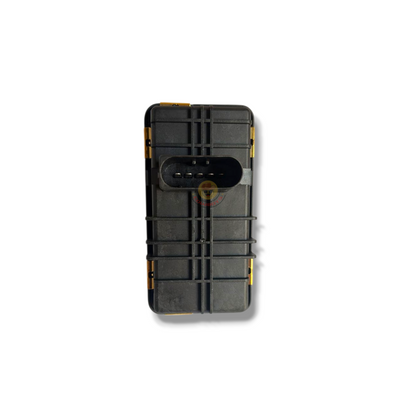

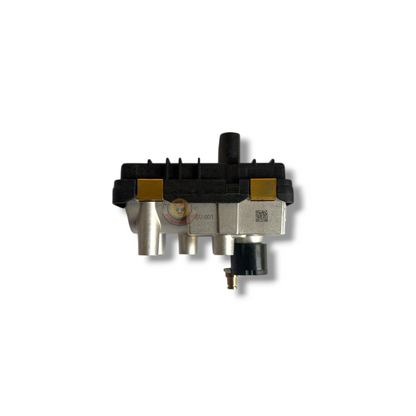

The electronic VNT actuator for the Garrett GTD1449VZ / GTD1449VZK turbo fitted to the 2.2L P4AT DuraTorq in the Ford Ranger PX2 and PX3 and Ford Everest UA. This is the later 2.2L turbo family Ford moved to in mid-2015, and it takes a different actuator to the earlier PX1 unit.
Symptoms are the usual story: limp mode, under-boost or over-boost with the turbo itself mechanically sound. No shaft play, no oil leak, no whine, just a boost control or actuator fault code. Replacing the stepper motor on its own saves you the cost of a whole turbo.
Specifications
| SU-001 Electronic Turbo Actuator | |
|---|---|
| Actuator code | SU-001 (also listed as G-85 / G-085) |
| Hella reference | 6NW010430-30 |
| Garrett actuator no. | 797863-0085 |
| Turbo models | GTD1449V / GTD1449VZ / GTD1449VZK |
| Engine | P4AT DuraTorq TDCi 2.2L 4-cylinder |
| Type | Electronic VNT stepper motor, plug-in |
| In the box | 1 x electronic actuator with connecting rod |
| Calibration | May be required after fitting |
Vehicle Fitment Guide
| Vehicle | Engine | Build |
|---|---|---|
| Ford Ranger PX2 | P4AT 2.2L | 06/2015 to 08/2018 |
| Ford Ranger PX3 | P4AT 2.2L | 08/2018 to 2022 |
| Ford Everest UA / UA II | P4AT 2.2L | 2015 to 2022 |
Mazda BT-50 UR 2.2L owners: most Australian-delivered BT-50 2.2L vehicles, both UP and UR, kept the earlier GTB1749V turbo through to 2020 and take the G-88 actuator. Check your turbo ID plate before ordering either one.
This actuator does not suit Ranger PX1, and does not suit any 3.2L P5AT application.
Years are a guide only. Confirm against the turbo part number before ordering.
Garrett Turbo Part Number Cross Reference
If the number on your turbo ID plate appears below, this is the correct actuator.
| GTD1449VZ / GTD1449VZK | ||
|---|---|---|
| 831157-0001 | 831157-1 | 831157-5001 |
| 831157-5001S | 831157-0002 | 831157-2 |
| 831157-5002 | 831157-5002S | 831157-0003 |
| 831157-3 | 831157-5003 | 831157-5003S |
| 831157-0004 | 831157-4 | 831157-5004 |
| 831157-5004S | 831157-0005 | 831157-5 |
| 831157-5005 | 831157-5005S | 831157-0006 |
| 831157-6 | 831157-5006 | 831157-5006S |
| 831157-0007 | 831157-7 | 831157-5007 |
| 831157-5007S | 889938-0001 | 889938-1 |
| 889938-5001 | 889938-5001S | 889938-5001W |
| 889938-0003 | 889938-3 | 889938-5003 |
| 889938-5003S | 889938-5003W | |
OEM Ford Cross Reference
| Ford | Hyphenated |
|---|---|
| FB3Q6K682AB | FB3Q-6K682-AB |
| FB3Q6K682AC | FB3Q-6K682-AC |
| FB3Q6K682AD | FB3Q-6K682-AD |
| FB3Q6K682MA | FB3Q-6K682-MA |
| FB3Q6K682MB | FB3Q-6K682-MB |
| FB3Q6K682MC | FB3Q-6K682-MC |
| FB3Z6K682S | FB3Z-6K682-S |
| Ford service numbers | ||
|---|---|---|
| 1894010 | 1925277 | 2237740 |
| 2420481 | 925277 | |
OEM numbers are listed for identification purposes only.
Wrong Actuator? Find the Right One
These four actuators look similar and are not interchangeable. Match your turbo number to the right listing:
- 831157 / 889938 (2.2L PX2, PX3, Everest) is this listing
- 787556 / 854800 (2.2L PX1, BT-50 UP and UR) needs the G-88 actuator
- 798166 / 812971 / 853333 (3.2L PX1, BT-50 UP) needs the G-74 actuator
- 822182 / 889939 (3.2L PX2, PX3, Everest, BT-50 UR) needs the SU-008 actuator
Not sure? Send us your turbo ID plate number or your rego and state and we will confirm it for you.
Installation and Calibration Notes
- Electronic actuators may require calibration after installation. Have a scan tool and the correct procedure ready before you start.
- Skipping calibration can leave the vehicle in limp mode or throw boost control faults even with a good actuator fitted.
- Set the linkage to the same effective length as the unit coming off before final tightening.
- Always confirm the turbo ID before ordering. Fitting an actuator calibrated for a different turbo can cause over-boost or under-boost.
- Professional installation is recommended.
