Greddy

N70 Hilux F55 High-Mount Turbo Kit – 1KD-FTV

N70 Hilux F55 High-Mount Turbo Kit – 1KD-FTV

(2)

$3,244.50 AUD
$3,244.50 AUD
Sale Sold out

Taxes included. Shipping calculated at checkout.

Normally Ships in 0-2 Business Days

N70 Hilux F55 High-Mount Turbo Kit – 1KD-FTV

F55 Performance Turbo High-Mount Turbo Kit ⚡ Complete Bolt-On Kit 🚚 Free Express AU Shipping 💳 Afterpay • Klarna • Zip

The N70 Hilux F55 High-Mount Turbo Kit is a complete performance upgrade for Toyota Hilux N70 1KD-FTV engines chasing stronger mid-to-top-end power, sharper throttle response, and the unmistakable F55 compressor sound.

Designed as a true high-mount turbo kit, this setup delivers aggressive airflow and boost control while retaining street-friendly drivability when paired with a front-mount intercooler and professional ECU tune.

📦 What’s Included

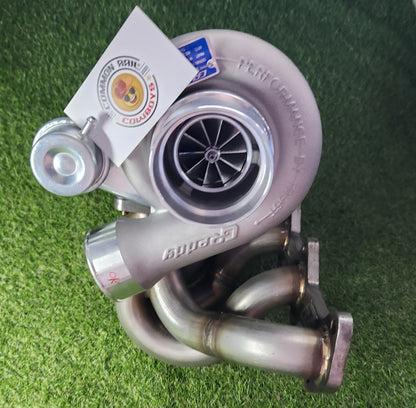

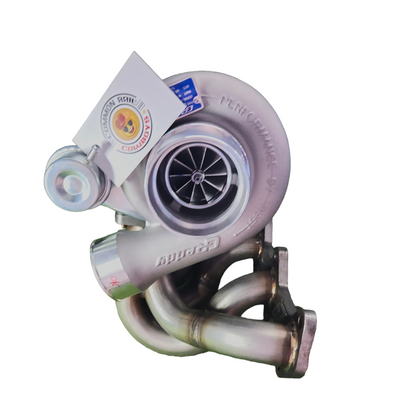

🌀 Turbocharger
F55 turbocharger featuring a 10-blade compressor wheel, known for fast response and signature sound characteristics.
🔧 Manifold & Dump Pipe

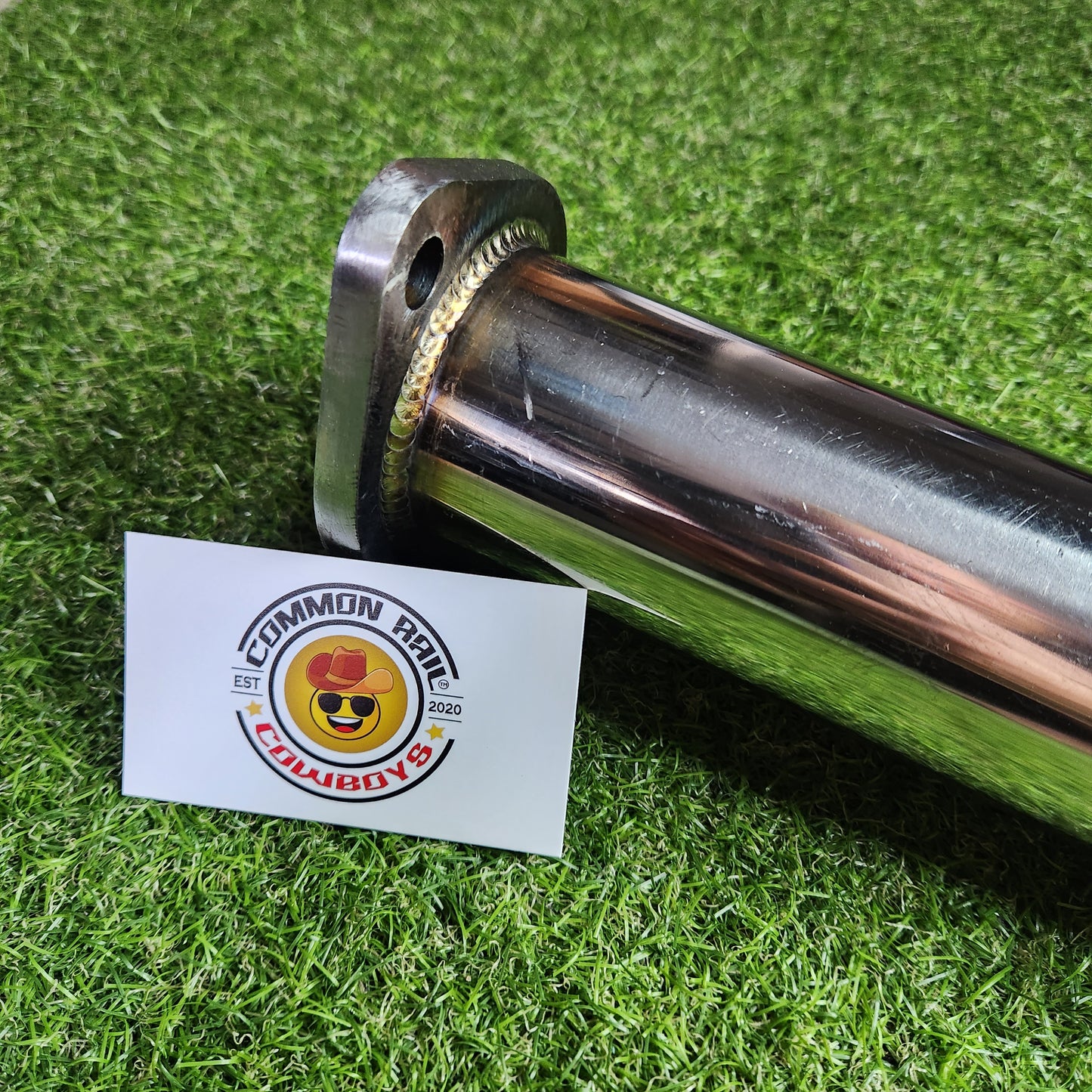

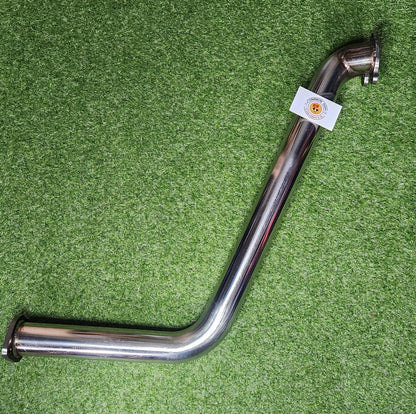

High-mount stainless manifold (TIG-welded) paired with a stainless dump pipe designed to suit factory exhaust routing.
⚙️ Boost Control Hardware
Actuator, mounting bracket and boost control components supplied as part of the kit.

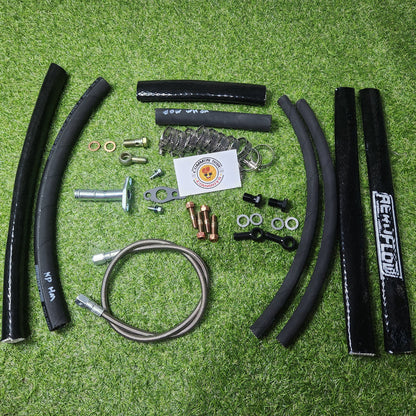

🛢️ Oil & ❄️ Coolant Lines
  • -4AN stainless oil feed line with banjo bolt and copper washers
  • Aeroflow Series 500 oil return kit with heat sleeve
  • Aeroflow Series 500 coolant line kit with fittings and heat protection
🧰 Installation Hardware
Turbo gaskets, studs, and copper nuts for manifold and dump pipe installation.
✅ Vehicle Fitment
  • Toyota Hilux N70 / KUN26 – 1KD-FTV engine
  • Aftermarket front-mount intercooler required
📌 Fitment & Tuning Notes
  • Minor modifications may be required for aftermarket 3″ exhaust systems
  • Factory oil return fitting requires modification
  • Coolant line under manifold must be adapted for high-mount layout
  • VNT stepper motor simulator required
  • ECU remap is essential for safe operation and performance
💳 Payment & 🚚 Shipping
  • Afterpay • Klarna • Zip available
  • Free Express Shipping Australia-Wide
❓ Frequently Asked Questions
Is this a complete turbo kit?
Yes — this is a complete high-mount turbo kit including turbo, manifold, dump pipe, oil & coolant lines, and mounting hardware.
Do I need a tune?
Yes. A professional ECU remap is mandatory to correctly control boost, fueling and EGTs.
Is this suitable for daily driving?
With the correct supporting mods and tuning, this setup maintains good drivability while offering a significant performance increase.

If you’re chasing real high-mount performance without marketing fluff, the F55 High-Mount Turbo Kit delivers.
