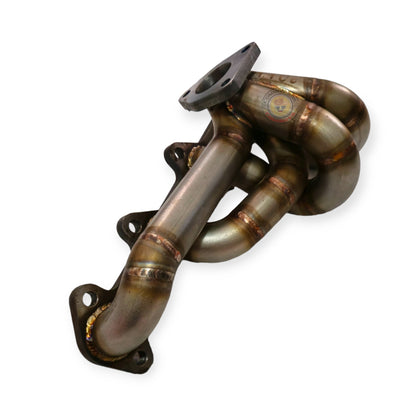

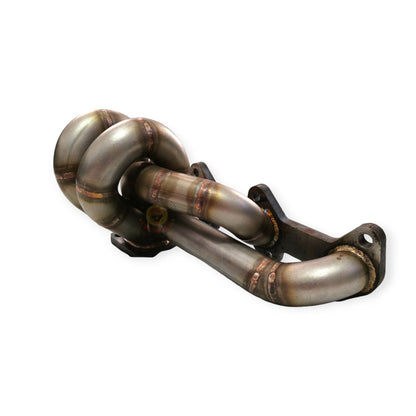

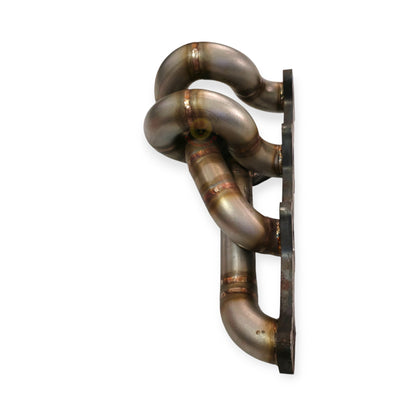

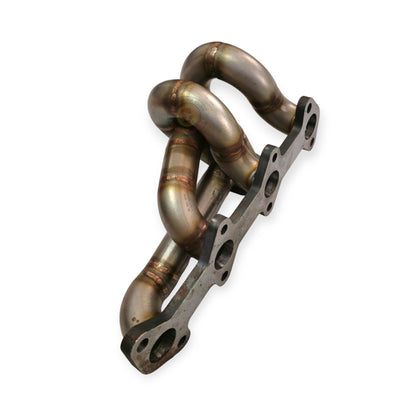

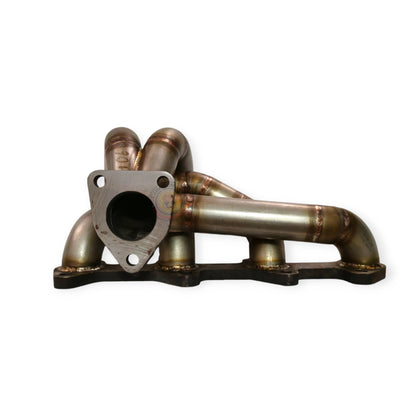

• PPRC Toyota 1KD-FTV low mount exhaust manifold in stainless steel, detailed view of the automotive exhaust component
  • Toyota 1KD-FTV low mount exhaust manifold by PPRC, made of stainless steel, shown with detailed metal surface and mounting points.
  • Toyota 1KD-FTV low mount exhaust manifold by PPRC, made of stainless steel, showing the detailed exhaust manifold part.
  • Toyota 1KD-FTV low mount exhaust manifold in stainless steel by PPRC, showing detailed metal construction.
  • Toyota 1KD-FTV low mount exhaust manifold by PPRC, made of stainless steel, showing the detailed design and mounting points.
  • Toyota 1KD-FTV low mount stainless steel exhaust manifold by PPRC, showing the polished metal construction and mounting points.
1 6

PPRC

Toyota 1KD-FTV Low Mount Exhaust Manifold SS

Toyota 1KD-FTV Low Mount Exhaust Manifold SS

(1)

$1,181.25 AUD
$1,181.25 AUD
Sale Sold out

Taxes included. Shipping calculated at checkout.

Normally Ships in 0-2 Business Days

1KD Low Mount Turbo Manifold – PPRC V2 | Hilux N70 Prado 120/150



SCH10 Stainless Steel – Low Mount Exhaust Manifold

⭐ PPRC Thailand – V2 Updated Design SCH10 Stainless Steel 1KD-FTV Low Mount CT16V + F44/F55 Compatible 📦 Same Day Dispatch* 💳 Afterpay • Humm • Klarna • Zip 🚚 Free Express Shipping AU

⚡ March 2026 – V2 Updated Design: Improved clearance for intercooler coupling when running 2.5" intercooler pipes. Premium PPRC Thailand fabrication (Note: V1 design is still featured in the photos)

The PPRC 1KD Low Mount Manifold V2 is engineered for strength, flow, and reliability. Designed to suit both standard CT16V frame turbos and 5-bolt F44/F55 frames – the perfect foundation for serious low-mount turbo setups.

🔥 Key Features
  • V2 Updated Design – improved intercooler coupling clearance for 2.5"+ pipes
  • Dual compatibility – fits standard CT16V & F44/F55 5-bolt turbos
  • Premium SCH10 stainless steel – built for strength and heat resistance
  • PPRC Thailand fabrication – proven quality & durability
  • Low-mount design – better weight distribution, improved boost control
  • Professional-grade construction – TIG-welded, engineered for long-term reliability
🚗 Vehicle Compatibility
  • Toyota Hilux N70 – 1KD-FTV 3.0L (2005-2015)
  • Toyota Prado KDJ120 – 1KD-FTV 3.0L (2003-2009)
  • Toyota Prado KDJ150 – 1KD-FTV 3.0L (2009-2015)

Suits both Euro 3 and Euro 4 1KD-FTV engines with low-mount turbo configuration.

⚙️ Turbo Compatibility
  • Factory CT16V turbo – direct fitment (oil lines may need slight adjustment)
  • F44/F55 5-bolt turbos – designed for 5-bolt frame aftermarket turbos
  • May require turbo compressor cover clocking for optimal intercooler pipe clearance
⚠️ Installation Notes
  • Manifold studs: The top 4 studs must be swapped with shorter studs (included in kit) – one may need slight trimming
  • CT16V setup: Oil feed/return lines may require minor adjustment for optimal routing
  • Heat shielding: Additional heat shielding may be required depending on setup
  • Professional installation recommended for best fitment and reliability
  • Recommended for use with a flexible oil feed and drain pipe set up - (we will have these available here)
🚚 Shipping & Payment
  • 📦 Same Day Dispatch* — typically ships same or next business day
  • 🚚 Free Express Shipping Australia-Wide — full tracking included
  • 💳 Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip
  • 🇦🇺 All major credit cards accepted

*Orders placed before 2 pm AEST on business days, subject to stock availability.

Will this manifold fit a factory CT16V turbo?

Yes, it fits factory CT16V turbos. You may need to slightly adjust the oil feed and return lines and modify or add additional heat shielding for optimal performance.

Does this suit aftermarket F44/F55 turbos?

Yes, it is designed for 5-bolt F44/F55 frames with no major modification required. May require turbo compressor cover to be clocked slightly for coupling to clear when using 2.5"+ intercooler piping.

What material is the manifold made from?

Built from high-grade SCH10 stainless steel for exceptional strength, heat resistance, and long-term durability.

Will I need to change my manifold studs?

Yes, the top four manifold studs will need to be swapped for the shorter studs included in the kit. One stud may need to be shortened slightly for optimal fitment.

What's new in the V2 design?

The V2 design features improved clearance for intercooler coupling when running 2.5" or larger intercooler pipes, eliminating fitment issues present in the original version.

Who makes this manifold?

This manifold is manufactured by PPRC Thailand, a trusted fabricator known for high-quality stainless steel exhaust components and proven durability in demanding applications.

PPRC V2 Low Mount Manifold • SCH10 Stainless Steel • 1KD-FTV

Premium Thailand fabrication. CT16V & F44/F55 compatible. Free express shipping AU.

Disclaimer: Common Rail Cowboys is not affiliated with PPRC Thailand or Toyota Motor Corporation. Professional installation recommended.
