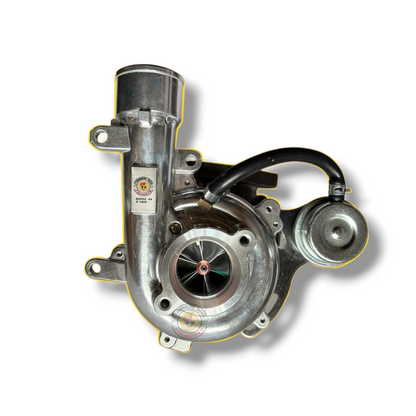

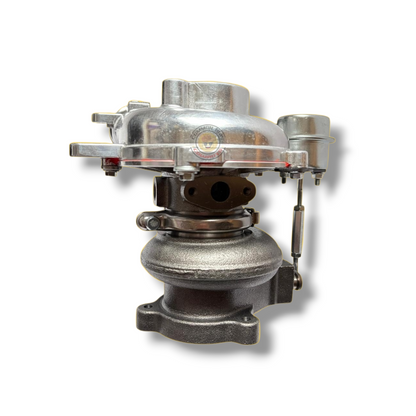

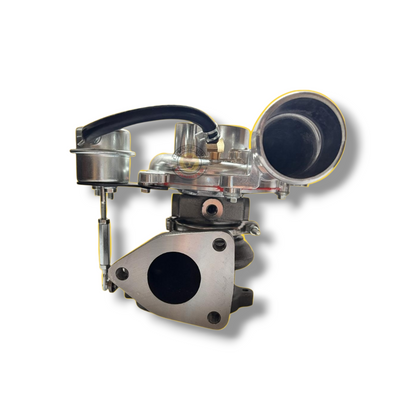

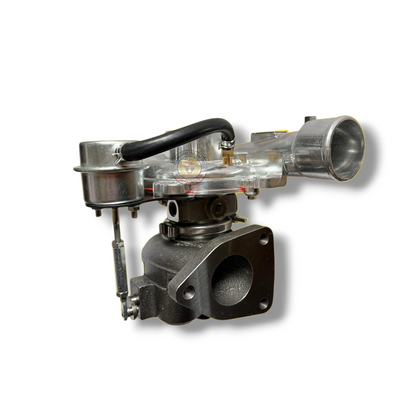

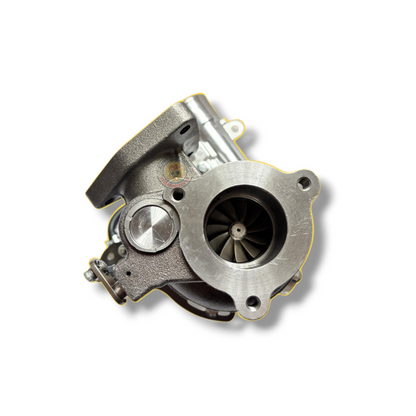

1KD Boost 44mm Turbo
1KD Boost 44mm Turbo
Taxes excluded. Shipping calculated at checkout.
Couldn't load pickup availability
Wastegated | Direct Bolt-On | Budget Friendly | Toyota 1KD-FTV
The 1KD Boost 44mm is our budget-friendly bolt-on upgrade for the Toyota 1KD-FTV. Strong response, reliable boost control, and a straightforward install using the factory mounting locations.
Built for owners who want a clean step up from the factory turbo without losing drivability, and who plan to run the usual supporting mods.
What Is Included
- 1KD Boost 44mm turbo (internal wastegate)
- Wastegate actuator (basic unit, see fitting notes)
- Manifold and dump pipe gaskets
- Oil feed line
- AN adapters (banjo style)
- Banjo bolt and O-rings
- Oil drain fitting, bolts and gasket
Not included: turbo and dump pipe studs and nuts (reuse originals or buy separately), coolant line kit, 2 x hose clamps for the oil return line.
Vehicle Fitment
- Toyota Hilux N70, 1KD-FTV: 2005 to 2015
- Toyota Prado 120 and 150, 1KD-FTV
- Toyota Hiace, 1KD-FTV
Factory-style fitment: bolts to the standard manifold, dump pipe and intercooler piping.
Fitting Notes
- ECU remap required. Professional tuning is essential for reliability.
- A basic actuator is supplied. Boost level is set by your tuner based on the vehicle setup. An additional actuator and boost controller may be required.
- The factory oil return needs to be cut and joined to the new drain. Requires 2 x hose clamps.
- Coolant line kit available separately.
Recommended Add-Ons
- 1KD VNT simulator module: ECU stepper motor delete for gated turbo conversions
- 1KD turbo stud, nut and gasket kit
- Upgraded 1KD injectors
- Front-mount intercooler
- 3 inch exhaust, upgraded intake or airbox
Shipping and Payment
- Afterpay, Humm, Klarna and Zip available
- Free express shipping Australia-wide
- Warranty and returns: see our refund policy
Frequently Asked Questions
Is this a direct bolt-on for my 1KD?
Yes. It bolts to the factory manifold, dump pipe and intercooler piping. An oil drain modification is required.
Do I need a tune?
Yes. An ECU remap is mandatory to manage boost, fuelling and EGTs correctly.
What supporting mods are recommended?
A quality intercooler, exhaust and intake upgrades, and professional tuning.
Bolt-On Boost Without the Big Price Tag
44mm wastegated turbo, oil line and gaskets in the box. Add a VNT simulator and a tune. Free express shipping Australia-wide.
Common Rail Cowboys is not affiliated with Toyota Motor Corporation. Installation should be carried out by a competent person and an ECU remap is required. Fitment to your vehicle is the buyer's responsibility. Performance modifications may affect your vehicle's warranty, insurance and road compliance.
