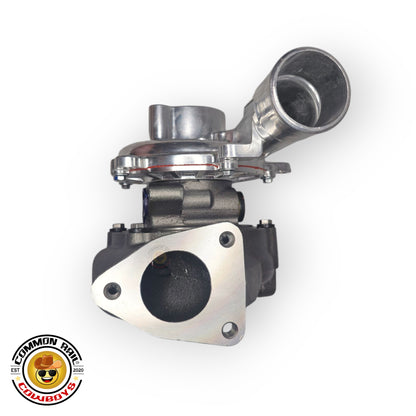

The proven drop-in 44mm VNT upgrade for the Toyota 1KD-FTV. Bolts onto the factory exhaust manifold, intercooler piping, and oil/coolant lines on the Hilux N70, Prado KDJ120, and Prado KDJ150. Real customer dyno results: up to 280.5 HP / 700 Nm at the wheels.

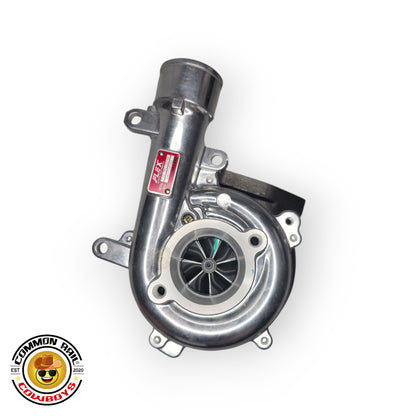

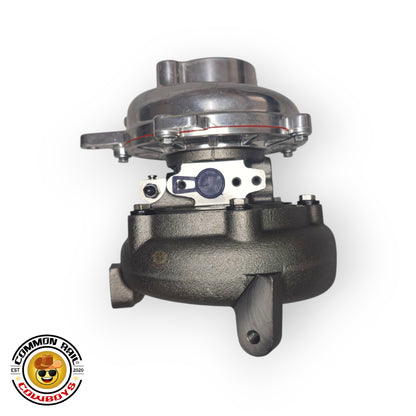

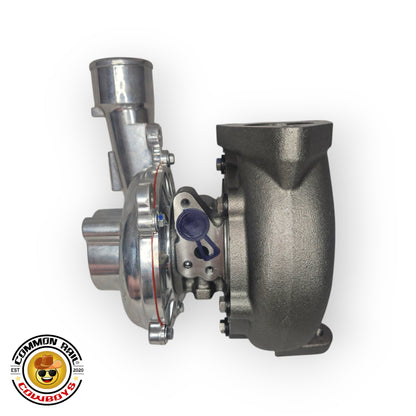

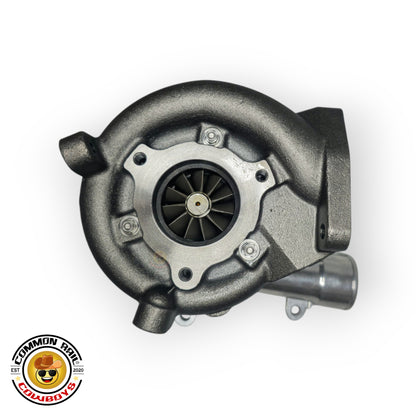

The Flex 44mm VNT turbo is a true bolt-on upgrade for Toyota's 1KD-FTV 3.0L D-4D engine fitted to the Hilux N70 (KUN26, 2005–2015), Prado KDJ120 (2003–2009), and Prado KDJ150 (2009–2015). Built around a 44mm billet compressor wheel in factory variable-nozzle housing geometry, it gives you more airflow, faster spool, and harder boost - while keeping your OEM exhaust, intercooler piping, and oil/coolant lines exactly where they are. No fabrication. No re-plumbing. Bolt it on, get it tuned, and go.

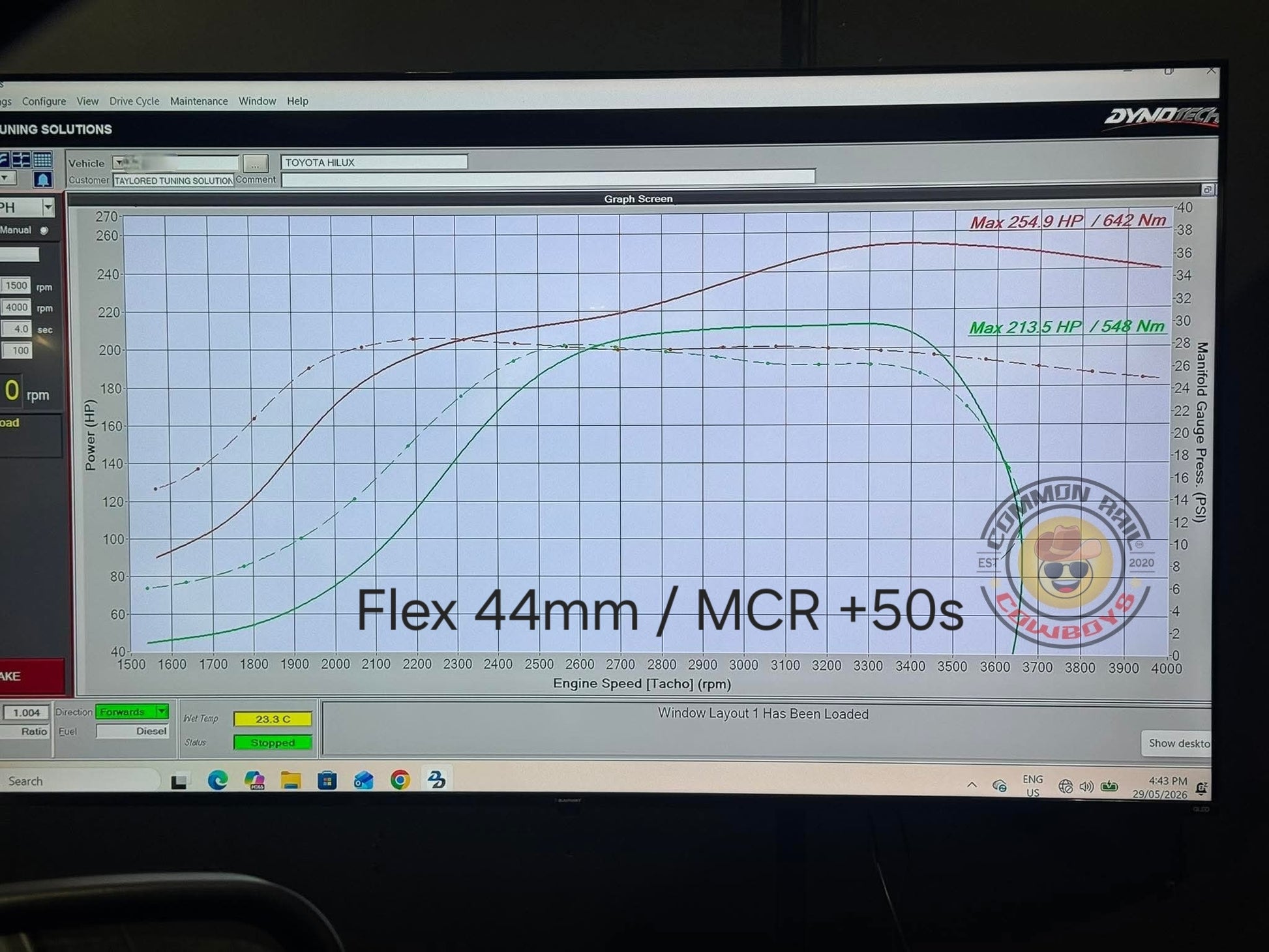

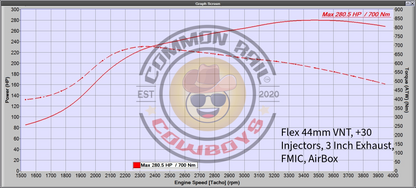

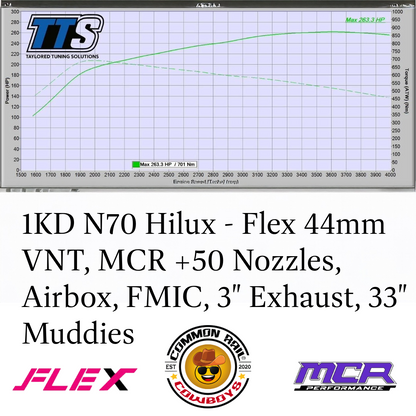

These aren't manufacturer marketing figures - they're from actual CRC customer vehicles on Australian dynos:
Power figures depend on tune, fuel, supporting mods, tyre size and ambient conditions. Both builds peak ~700 Nm ATW - exactly what the Flex 44mm VNT was designed to deliver on a properly built 1KD.
| Vehicle | Engine | Years | Codes |
|---|---|---|---|
| Toyota Hilux N70 | 1KD-FTV 3.0L | 2005 – 2015 | KUN26R / KUN26 / KUN16 |
| Toyota Prado 120 Series | 1KD-FTV 3.0L | 2003 – 2009 | KDJ120 / KDJ125 |
| Toyota Prado 150 Series | 1KD-FTV 3.0L | 2009 – 2015 | KDJ150 / KDJ155 |
✅ Direct bolt-on fitment. Mounts to the factory exhaust manifold, dump pipe, intercooler piping, and OEM oil & coolant lines.
Not sure if it fits? Text us your VIN on 0483 930 906 - we'll confirm in minutes.
Actuator not included - re-use your original VNT stepper, or grab a fresh one:

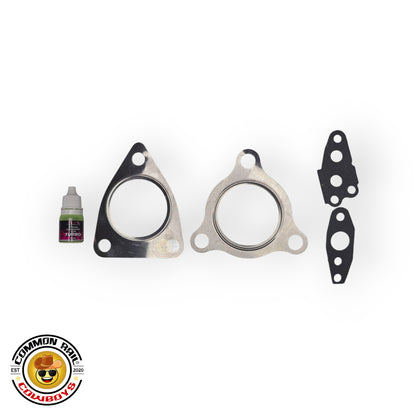

Studs/nuts not included - reuse originals or grab our CRC fitting kit:
To hit 250–280+ RWHP, pair the Flex 44mm VNT with:
Carries a 12-month manufacturer's warranty against defects in materials or workmanship, alongside your full rights under the Australian Consumer Law. Warranty requires installation by a qualified mechanic with verified oil pressure and oil supply on first start.
Damage caused by lack of pre-lube, blocked oil feed, contaminated oil, over-boost above safe limits, or improper tuning is not covered. See our full Refund & Warranty Policy for complete terms.
Q: Is this a true direct bolt-on for my Hilux N70 or Prado?
A: Yes. Mounts to the factory exhaust manifold, dump pipe, intercooler piping, and OEM oil/coolant hardlines on the Hilux N70, Prado KDJ120, and Prado KDJ150. No fabrication, no cutting.
Q: What power can I expect?
A: Real customer dynos with this turbo, supporting mods, and a tune are landing 263–280 HP at the wheels with 700 Nm ATW. See the dyno results section above for the exact builds.
Q: Do I need a tune?
A: Maybe - We sell these turbos as requiring a tune, but plenty of customers have reported driving them without a tune without issues.
Q: Do I have to buy a new actuator?
A: No - your factory VNT stepper is re-used. Replacement actuators available above if yours is faulty.
Q: How much boost can it safely run?
A: With supporting mods and a proper tune, 28–30 psi as a daily/tow target, up to 35 psi peak on dedicated performance builds.
Q: What injectors do I need?
A: Stock injectors are fine up to ~200 RWHP. Above that you'll see smoke and rising EGTs - go to MCR +30 Injectors / Nozzles for ~220–260 RWHP, or MCR +50 nozzles for 260+ RWHP.
Q: Will it work on my auto?
A: Yes - fits manual and auto 1KDs equally. With auto trans builds we recommend an upgraded transmission cooler if you're towing or running over 250 RWHP regularly.
Q: Can I run it without changing the exhaust?
A: It will physically work on the factory 2.5" exhaust, but you'll see significant backpressure above 25 psi. We strongly recommend a 3" turbo-back to fully unlock the turbo.
Q: How long is the warranty?
A: 12 months manufacturer's warranty plus your full rights under the Australian Consumer Law.
Performance modifications may affect your vehicle's roadworthy compliance and insurance status. Confirm your local regulations before purchase. Common Rail Cowboys is not affiliated with Toyota Motor Corporation or FLEX (Thailand). Installation should be performed by a qualified diesel technician. Tuning, supporting mods, and fitment compliance are the buyer's responsibility.
