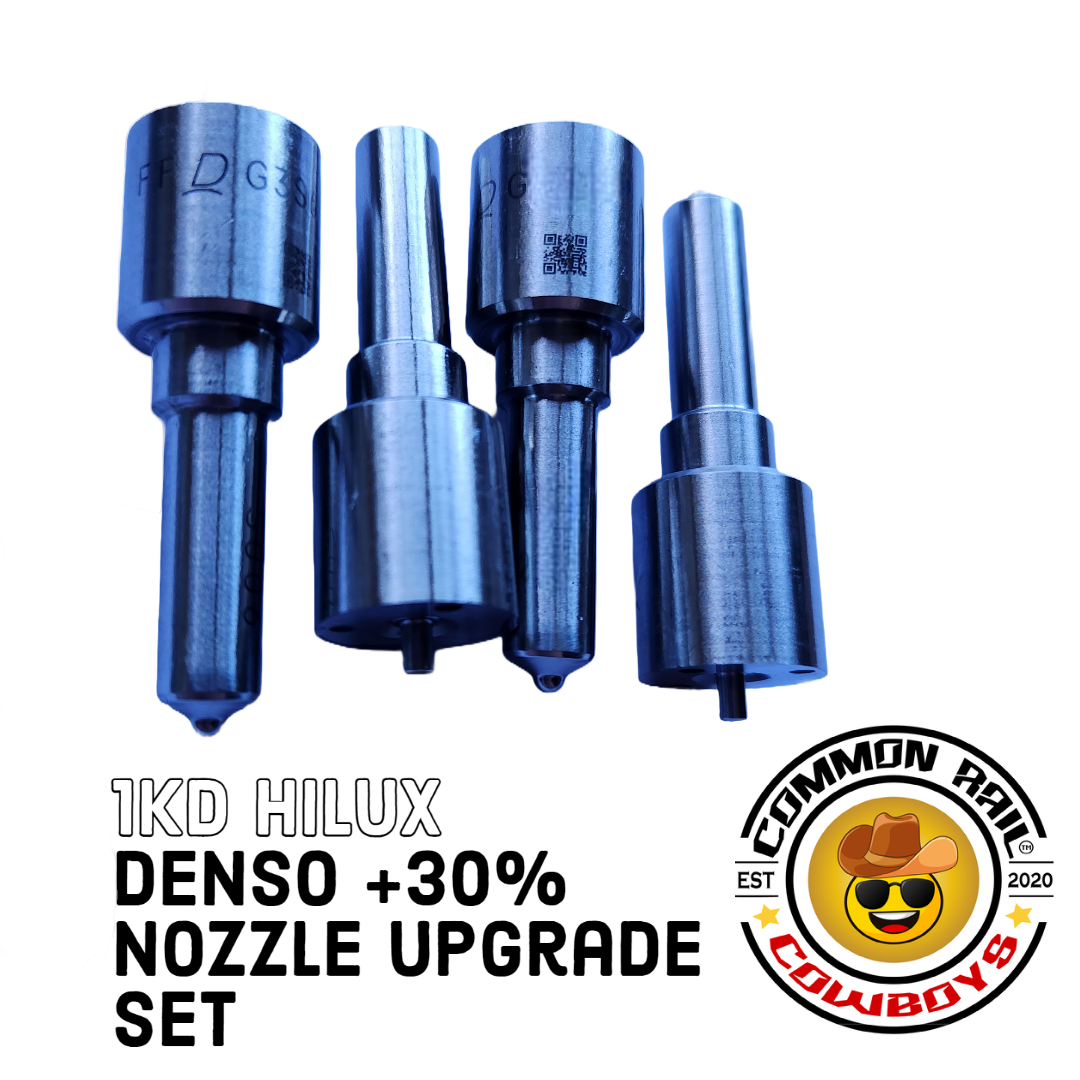

• 4 × Genuine Denso +30% Injector Nozzles
• 4 × Genuine Seats and O-Rings – perfect seal on installation

The larger nozzle flows more fuel per degree of injection, reducing the required pulse width. Fuel goes in during the correct window for an optimal burn and maximum mechanical leverage on the power stroke – which is why a properly tuned +30% setup makes more power with less smoke, not more.

Tuning required. Nozzles are a direct replacement for the standard Denso injector nozzles – no other hardware changes needed, but an ECU remap is essential.

• Toyota Hilux N70 – 1KD-FTV (2005–2015)

Leave your rego + state, or VIN + year model, in the order notes at checkout so we can confirm the correct nozzles for your injector code (11, 13 or 18 code).

Installation is a moderately involved job – recommended for a qualified diesel shop, though a capable home mechanic with the right tools can do it in roughly 2–5 hours. You'll need accurate torque wrenches, deep sockets, a crows foot, a scan tool with injector learn functions (or Techstream), and patience.

• 1KD Genuine Injector & Rocker Cover Fitting Kit – seals and hardware for the job
• Hartridge Bench Testing Service – we strongly recommend bench testing and shimming injectors to suit when fitting new nozzles

If your injector bodies have big kilometres on them, complete upgraded injectors are the smarter buy:

• 1KD Injector Upgrade +30% & +50% – bench tested & balanced sets
• MCR 1KD +30 Nozzles / MCR +50 Nozzles – the modified-nozzle alternative

• Free Express Shipping Australia-Wide
• Buy Now, Pay Later: Afterpay, Humm, Klarna & Zip

Q: Do I need a tune?

A: Yes. Without a remap the ECU will fight the extra flow and you'll get smoke instead of power. Tuning is not optional with +30% nozzles.

Q: Genuine Denso +30 or MCR +30 – what's the difference?

A: Genuine Denso +30s are factory-made high-flow nozzles. MCR nozzles are precision-modified performance nozzles available in +30 and +50. Both work well tuned – message us with your power goal and we'll point you at the right set.

Q: Will these suit my 11, 13 or 18 code injectors?

A: Leave your rego + state or VIN in the order notes and we'll confirm the correct nozzle for your injector code before dispatch.

Q: Should the injectors be bench tested?

A: Strongly recommended. Testing and shimming after a nozzle change ensures balanced delivery across all four cylinders – we do this in-house on the Hartridge bench.

Q: How long does installation take?

A: Roughly 2–5 hours depending on skill and tooling. A scan tool with injector learn functions is required to code the injectors after install.
