HPD Special Parts
4JJ3 EGR Delete Plates - HPD
4JJ3 EGR Delete Plates - HPD
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability

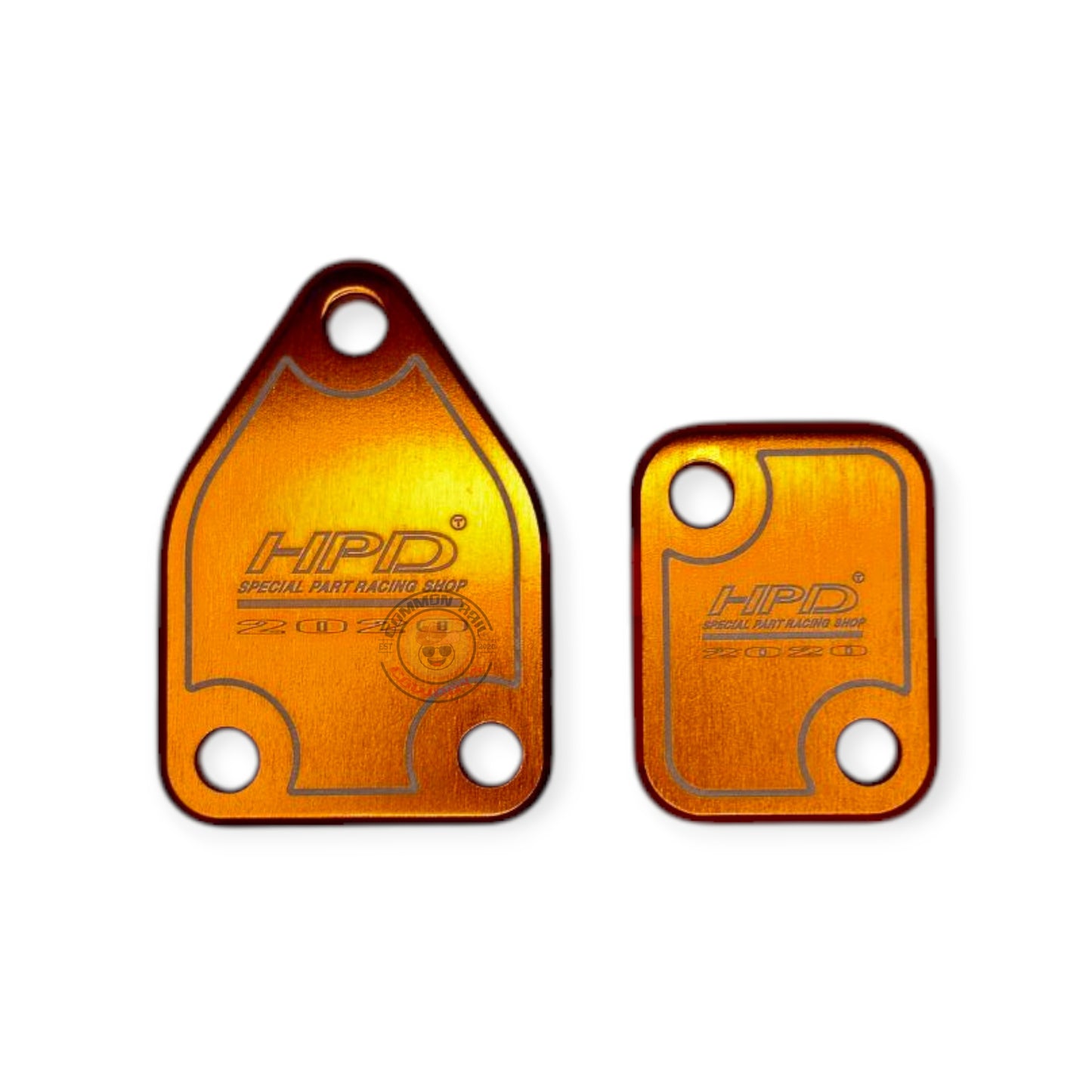

HPD 4JJ3 EGR Delete Plates
4JJ3-TCX 2020 On | CNC Anodised Alloy | D-MAX, MU-X and BT-50
The HPD 4JJ3 EGR cooler delete plates block the EGR circuit on the current 4JJ3-TCX, stopping exhaust gas from recirculating into the intake. It keeps the manifold clean, takes a restriction out of the airflow path, and gives boost control something consistent to work with on a tuned or towing truck.
What It Does
- Blocks the EGR cooler circuit. No exhaust gas recirculating into the intake.
- Prevents carbon build-up in the intake runners.
- Anodised alloy construction. Strong, heat-tolerant and corrosion-resistant.
- Suits high-boost builds. Worth doing alongside a turbo upgrade rather than after it.
Fitment
- Isuzu D-MAX. 4JJ3-TCX, 2020 on.
- Isuzu MU-X. 4JJ3-TCX, 2020 on.
- Mazda BT-50. 4JJ3-TCX, 2020 on. Does not suit the square EGR cooler.
The square EGR cooler is not covered by this listing. Some 4JJ3 vehicles, BT-50s in particular, run the square-type cooler. Those take the DPF 4JJ1 EGR Delete Plates instead. Check the flange style before you order. If you are not certain, send us a photo of the cooler and we will confirm which set you need.
Which EGR Plate Do I Need
- This listing. 4JJ3-TCX from 2020, not the square cooler.
- Square EGR cooler, including BT-50. Use the DPF 4JJ1 EGR Delete Plates, 2016-2020.
- Pre-DPF, 2014 to 2016. Use the 4JJ1 Pre-DPF EGR Delete Plates.
- Earlier 4JJ1, 3-bolt offset and 2-bolt round. Use the 4JJ1 EGR Delete Plates 2006-2014.
- Single-cooler layout. Use the Rodeo RA7 EGR Delete Plates.
What Is Included
- HPD 4JJ3 EGR cooler delete plate set.
- Mounting hardware where applicable.
Fitting Notes
- An ECU EGR disable is required. A remap or a plug-in delete loom, either is fine.
- Clean the sealing surfaces before the plates go on.
- Aftermarket turbo piping can block access. Check what is in the way before you start.
- If you remove the cooler, cap the coolant lines. Our HPD billet 17mm coolant blanking plugs are made for capping them off, sold as a pair.
Shipping and Payment
- Free express shipping Australia-wide.
- Dispatch: orders placed before 2 PM AEST on a business day go out the same day.
- Buy now, pay later: Afterpay, Humm, Klarna and Zip.
Read This Before You Order
This is emissions hardware. Removing it is for off-road and motorsport use, and it is generally not legal on a road-registered vehicle in Australia. Check your state's requirements before you buy.
Frequently Asked Questions
Q: Will these fit every 4JJ3?
A: No, and this is the one to get right. They suit 4JJ3-TCX D-MAX, MU-X and BT-50 from 2020, but not vehicles running the square EGR cooler. Square cooler cars take the DPF 4JJ1 plates linked above. Check the flange, not the badge.
Q: Do I need a tune?
A: Yes. An ECU EGR disable or a plug-in delete loom, otherwise you will get fault codes.
Q: Does this make power?
A: Not by itself. It removes a restriction and keeps soot out of the intake, which makes airflow and boost control more consistent over time.
Q: What are they made from?
A: CNC-machined anodised alloy, chosen for strength, heat resistance and durability.
Q: Is it legal on the road?
A: No. EGR modifications are for off-road and motorsport use.
Genuine Product Of
HPD Special Part Racing Shop
Clean Intake On The 4JJ3
HPD CNC anodised EGR delete plates for the 4JJ3-TCX, 2020 on. Free express shipping Australia-wide.
Disclaimer: Common Rail Cowboys is not affiliated with Isuzu Motors or Mazda Motor Corporation. HPD and the HPD logo are trademarks of HPD Special Part Racing Shop, used to identify the product supplied. Recommended for off-road and motorsport use. Emissions hardware is removed as part of the fitment: confirm your local compliance requirements before purchase.
