NPC x CRC 850Nm Ultra Heavy Duty Clutch and Billet Flywheel Kit NPC7678-1D/1 | Toyota Hilux N70 1KD-FTV 2005-2015
NPC x CRC 850Nm Ultra Heavy Duty Clutch and Billet Flywheel Kit NPC7678-1D/1 | Toyota Hilux N70 1KD-FTV 2005-2015
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability
NPC7678-1D/1 | Toyota Hilux N70 KUN16 / KUN26 1KD-FTV, 2005 to 2015
The top of the N70 organic range, built by NPC to our spec for the builds that outrun the 750: +50 injectors, a big turbo, or heavy towing on serious power. NPC's Super Heavy Duty organic disc on a higher clamp NPC-modified cover, matched to the NPC billet steel flywheel, rated to 850Nm and around 500 HP at the flywheel. Still an organic disc, so it engages like a clutch and not a light switch.
Fitment
| Vehicle | Chassis | Engine | Build dates |
|---|---|---|---|
| Toyota Hilux N70 | KUN16 / KUN26 | 1KD-FTV 3.0L, manual | 03/2005 to 09/2015 |
Same base kit as the NPC7678-1D, so early 260mm and late 275mm factory flywheel applications are both covered by the supplied billet flywheel. Not sure? Add your VIN or State and Rego to the order notes and we will confirm before dispatch.
Specification
| Part number | NPC7678-1D/1 |
| Type | Ultra Heavy Duty organic, NPC x Common Rail Cowboys spec |

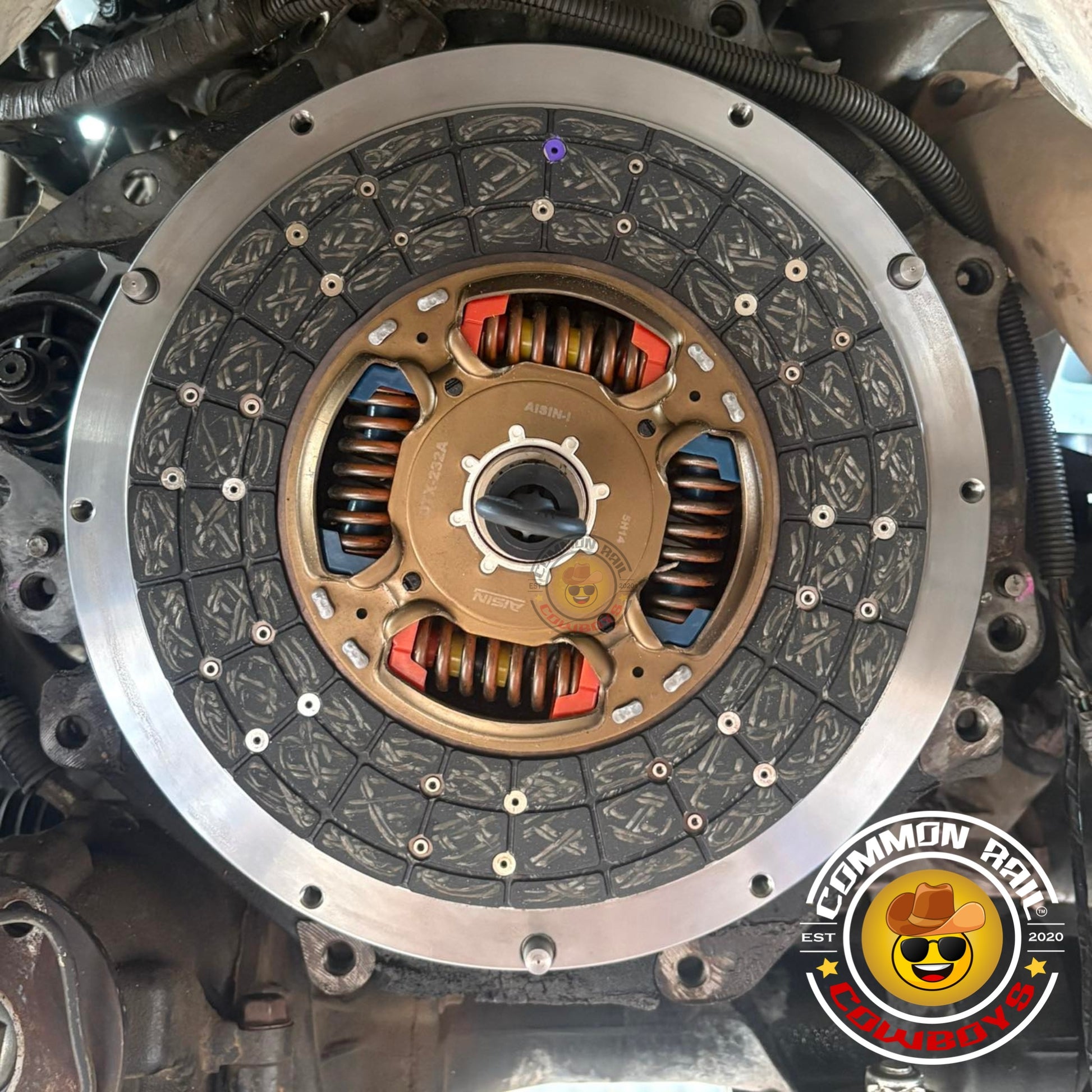

| Clutch plate | 275mm organic, Super Heavy Duty |

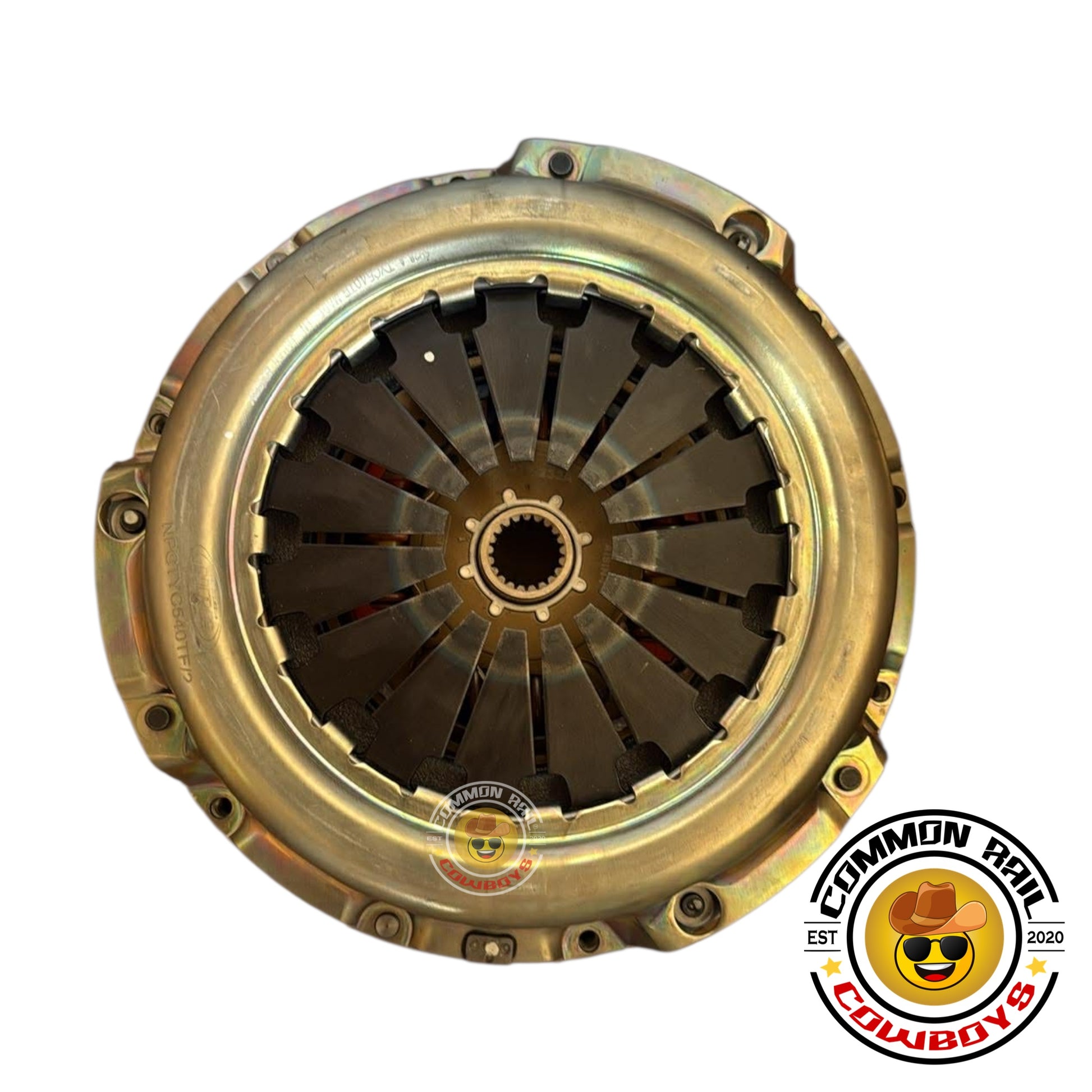

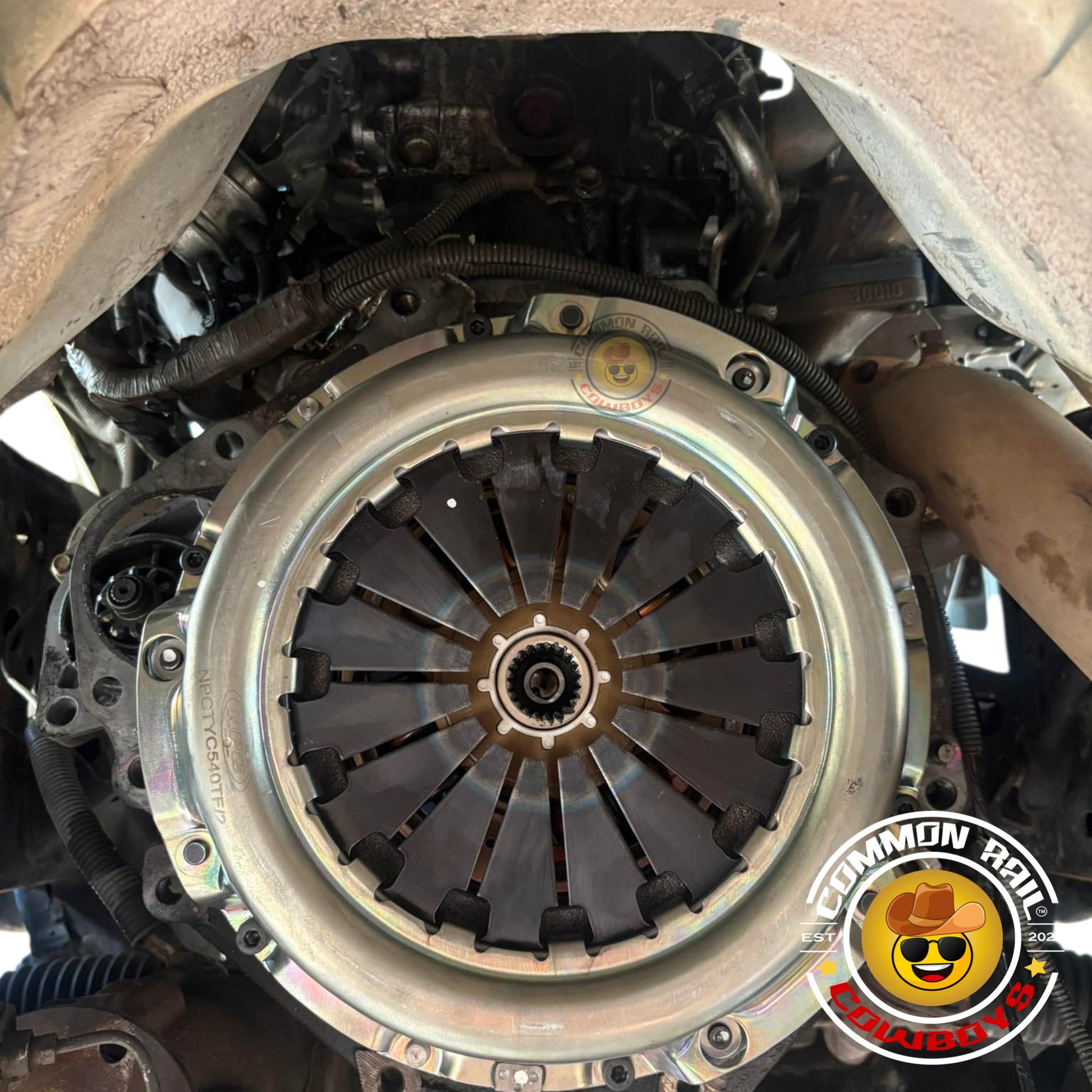

| Pressure plate | NPC-modified HD cover, higher clamp than the NPC7678-1D |

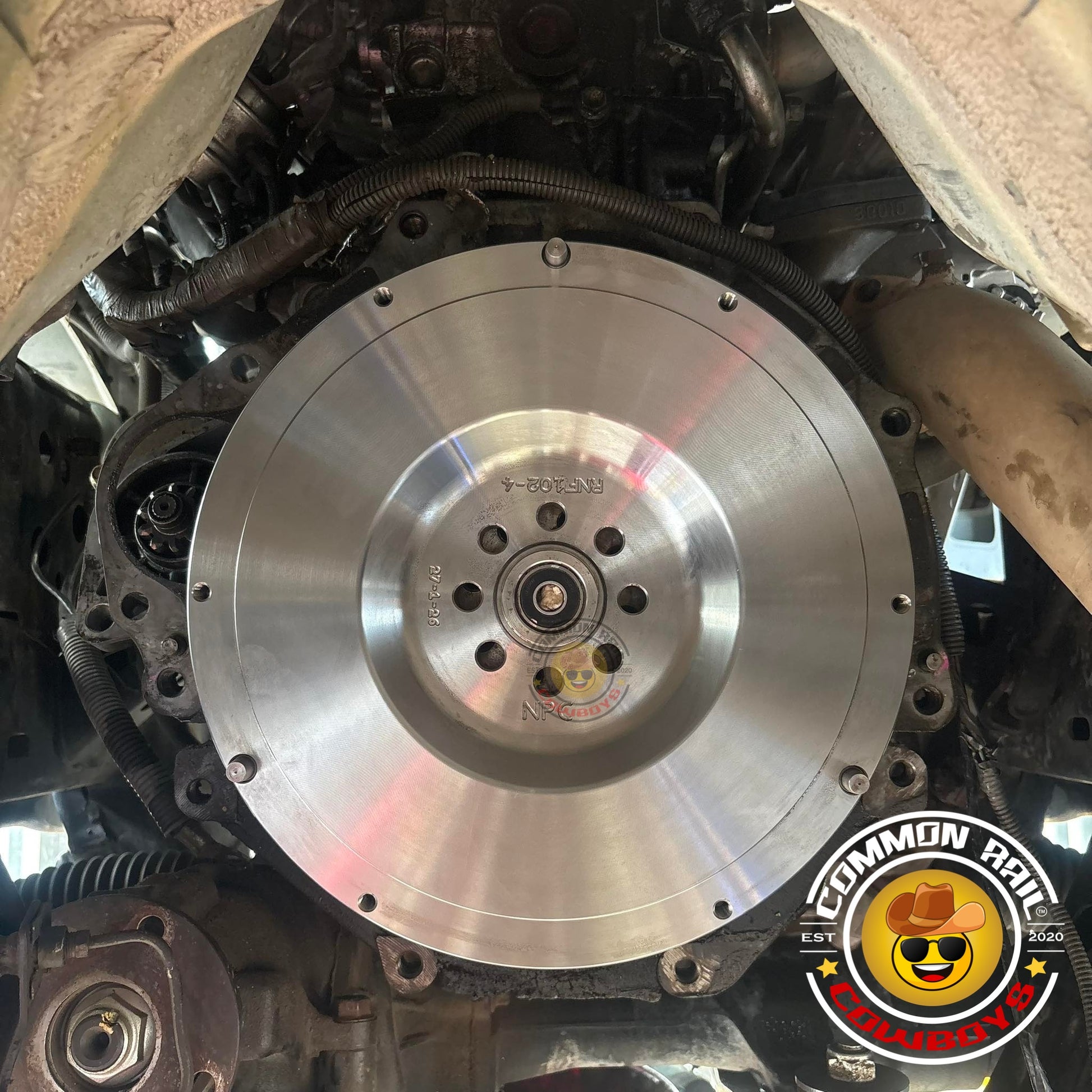

| Flywheel | NPC billet steel, single mass, included. Fitted as a set |
| Rating | 850Nm, approx 500 HP at the flywheel, setup dependent |
| Spigot bearing, release bearing | Included |
This is a CRC-specified build of the NPC7678-1D. It is not listed on NPC's public catalogue; it is made for us.
What's in the Box
- NPC Super Heavy Duty 275mm organic clutch disc
- NPC-modified high clamp pressure plate, Ultra HD spec
- NPC billet steel flywheel, machined and ready to fit
- Release (throwout) bearing
- Spigot bearing

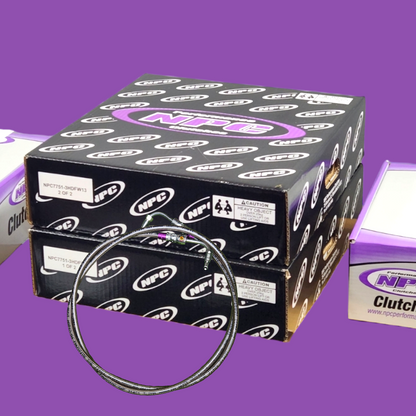

- With Braided Line option: NPC braided clutch line, Hilux
Which NPC Kit Do I Need?
| Kit | Rating | Build |
|---|---|---|
| NPC8006-1B Heavy Duty | 650Nm | Tune plus minor supporting mods, daily driver |
| NPC7678-1D Super Heavy Duty | 750Nm | Turbo, injectors, towing on a tune. Under about 300 HP at the wheels |
| NPC7678-1D/1 Ultra HD, NPC x CRC (this kit) | 850Nm | +50 injectors, big turbo, heavy towing on serious power. Over 300 HP at the wheels |
Rule of thumb: if you are running our +50 injectors with a 44mm or bigger turbo, or you tow heavy on a serious tune, this is the kit. Under that, the 750 will do it with a lighter pedal. Unsure? Message us with your turbo, injectors and what you tow.
Braided Clutch Line
The N70 has a hydraulic damper (accumulator) in the clutch line. Bypassing it with the NPC braided line removes fluid dampening, giving a more direct pedal and sharper engagement. On a cover with this much clamp it is worth having.
NPC note: removing the accumulator can introduce a slight pedal pulsation that the factory part normally damps. That is not a warranty item.
Fitting and Bed-In
- Fit to NPC's standard. NPC's fitting sheet for the base kit applies: Fitting Sheet 4a, KUN26 Hilux, NPC7678-1D (PDF).
- Before fitting, trial the disc on the gearbox spline and check cover and release bearing height.
- The supplied billet flywheel comes machined and ready to fit. Fit the kit as a set; do not mix this cover and disc with another flywheel.
- Inspect the fork, pivot, slave cylinder and rear main seal while the gearbox is out. See the genuine 1KD rear main seal kit.
- Bed in for 1,000 km of normal around-town driving. It is the gear changes that bed it in. No burnouts, flat changes or towing until then.
What to Expect
- Pedal: firmer than the 750, and clearly firmer than stock. Still an organic disc, so engagement stays progressive and streetable.
- Rated capacity assumes a healthy drivetrain, correct fitment and a sensible tune.
- Some setups show light gear rattle at idle with a single mass billet flywheel. Normal.
- NPC warranty excludes shudder, slip, pedal feel and harsh engagement on vehicles outside original specification, which is every vehicle this kit goes into. Fit it properly and bed it in.
Shipping, Payment and Warranty
- Free express depot-to-depot shipping Australia wide. Approx 30 kg, ships via depot freight. Home delivery available on request.
- Buy now, pay later. Afterpay, Humm, Klarna and Zip.
- NPC standard warranty, 12 months or 20,000 km against faulty materials and workmanship, conditions apply. See our Refund, Returns and Warranty Policy.
- Usually dispatches same or next business day.
Frequently Asked Questions
Q: What is it rated to?
A: 850Nm, around 500 HP at the flywheel, on a healthy drivetrain, fitted and bedded in correctly.
Q: How is it different to the 750?
A: Same 275mm organic disc and same billet flywheel. The cover is built to a higher clamp spec for us, which is what buys the extra 100Nm. Expect a firmer pedal for it.
Q: Is the flywheel included?
A: Yes. NPC billet steel flywheel, machined and ready to fit, plus release and spigot bearings.
Q: Will the pedal be heavy?
A: Firmer than the 750 and firmer than stock. Streetable, but this is not a daily-driver spec clutch; buy it because your build needs it.
Q: Is it good for towing?
A: Yes, that is half the reason it exists. Bed it in first and gear the truck properly.
Q: Do I need the braided line?
A: Recommended. It deletes the factory damper for a more direct pedal.
850Nm. Built for Us. Built for Big Builds.
NPC x CRC Ultra Heavy Duty clutch and billet flywheel for the serious N70 Hilux. Free express shipping Australia wide.
Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation. Installation by a qualified technician to NPC's standard. Fitment verification is the buyer's responsibility.
