• Toyota LandCruiser 300 Series – F33A-FTV 3.3L V6 Twin-Turbo Diesel | 2022 onwards

⚠️ Not compatible with Kaymar rear bar setups

• 100% water separation (based on 300 µm droplet size)
• 98% particle separation (30 micron particles)

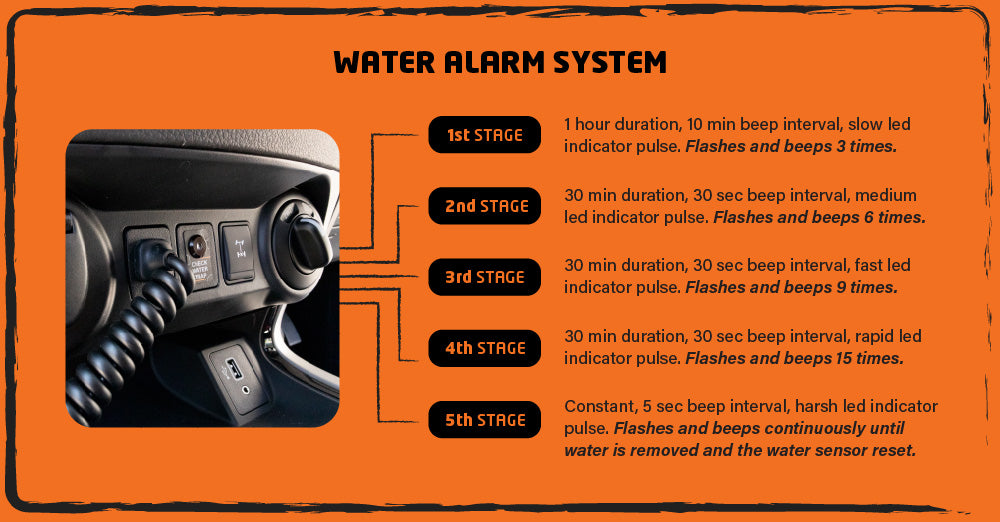

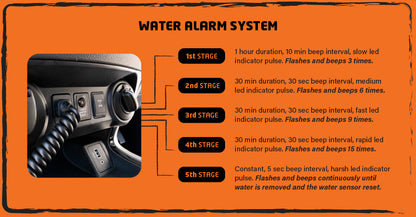

• In-cab multi-stage water alert (visual + audible)
• Protects against corrosion and abrasive wear
• Spin-on style filter for easy servicing
• No manual water level checks required

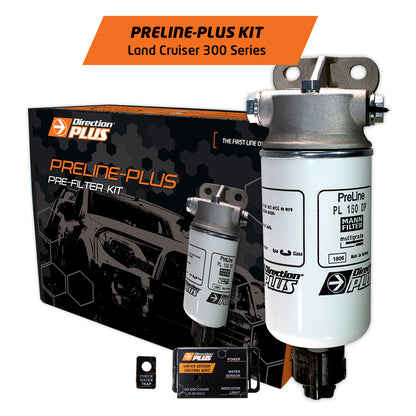

• Filter Type: MANN+HUMMEL PreLine-Plus (PL150DP)
• Water Separation: 100% efficiency (300 µm droplet size)
• Particle Filtration: 98% at 30 micron
• Service Interval: Replace element every 40,000 km or per vehicle service schedule
• Flow Rate: Up to 150 L/h
• Fittings: M16x1.5 to -8AN adaptors with ½" straight hose fittings

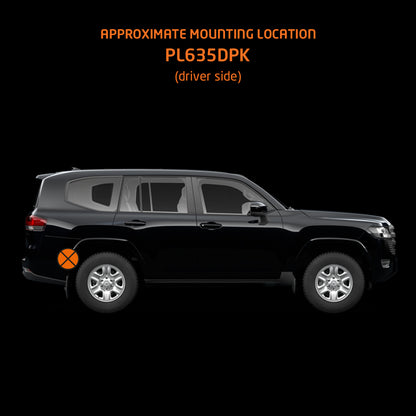

• Mounting: Under driver's rear quarter panel on chassis rail
• Installation Note: Spare tire removal required for access

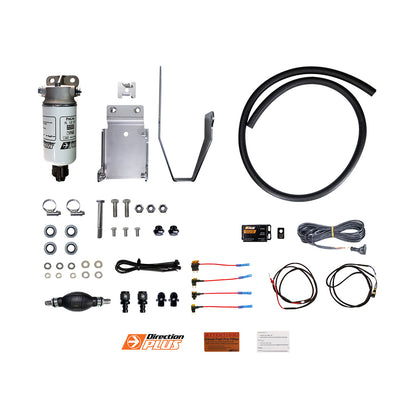

• PL150DP PreLine-Plus filter assembly
• LC300-specific mounting brackets (3 pieces)
• 2 x M16x1.5 to -8AN adaptors
• 2 x -8AN to ½" straight hose fittings
• 4 x M16 aluminium washers
• 2 x M16x1.5 plugs
• 1500mm ½" EFI-rated fuel hose
• 2 x 18-20mm stainless fuel clamps
• Mounting hardware (M10, M8 bolts, washers, nuts)
• Inline hand priming pump
• Water alarm kit with wiring
• 10 x 200mm cable ties

Recommended: Competent qualified mechanic

DIY Time: 2.5–3.5 hours

Location: Under driver's rear quarter panel (chassis rail mounting)

Required Tools:

• Socket set and spanners
• Screwdrivers and pliers
• Hose cutters
• Loctite 567 or equivalent thread sealant
• Small container for priming

Key Installation Steps:

1. Remove spare tire for access
2. Mount fuel filter bracket to chassis rail under driver's rear quarter
3. Install M16 adaptors to PreLine head with thread sealant
4. Mount PreLine assembly to bracket
5. Cut and install fuel supply hose (tank hard line → PreLine inlet)
6. Install return hose (PreLine outlet → factory filter)
7. Prime system using inline hand pump, then factory primer
8. Install filter cover bracket
9. Run vehicle 20 minutes to clear air from system
10. Reinstall spare tire

Important: Use Loctite 567 on all threaded connections. Keep -8AN threads clean during installation.

Filter Replacement: Every 40,000 km or per vehicle service schedule

Replacement Element: PL150DP (~$65–$85)

Filter Changes: Use retained inline hand pump for priming during servicing

Water Draining: In-cab alarm alerts when water detected. Open drain tap to release.

Q: Will this void my Toyota warranty?

A: No. Aftermarket protection devices don't void warranty under Australian Consumer Law.

Q: Why is it not compatible with Kaymar rear bars?

A: The mounting location under the driver's rear quarter panel may interfere with certain Kaymar rear bar configurations. Check clearances before ordering.

Q: Do I really need to remove the spare tire?

A: Yes. Spare tire removal is required for proper access to the mounting location. It simplifies installation significantly.

Q: How long does installation take?

A: 2.5–3.5 hours for experienced DIYers. Professional installation typically takes 2–3 hours.

Q: Why does it mount under the chassis instead of in the engine bay?

A: The LC300's V6 engine bay has limited space. Chassis mounting provides better access for servicing and allows dual battery compatibility.

Q: What's the inline hand pump for?

A: It's used to prime the system during installation and future filter changes. Keep it in the vehicle for servicing.
