Ford Ranger PX2 / PX3 / Everest UA / Mazda BT-50 UR P5AT 3.2L (SU-008) Turbo Actuator
Ford Ranger PX2 / PX3 / Everest UA / Mazda BT-50 UR P5AT 3.2L (SU-008) Turbo Actuator
Taxes excluded. Shipping calculated at checkout.
Couldn't load pickup availability

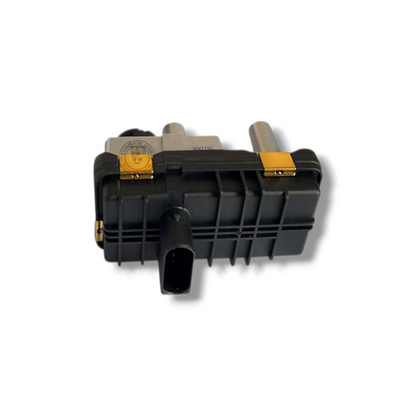

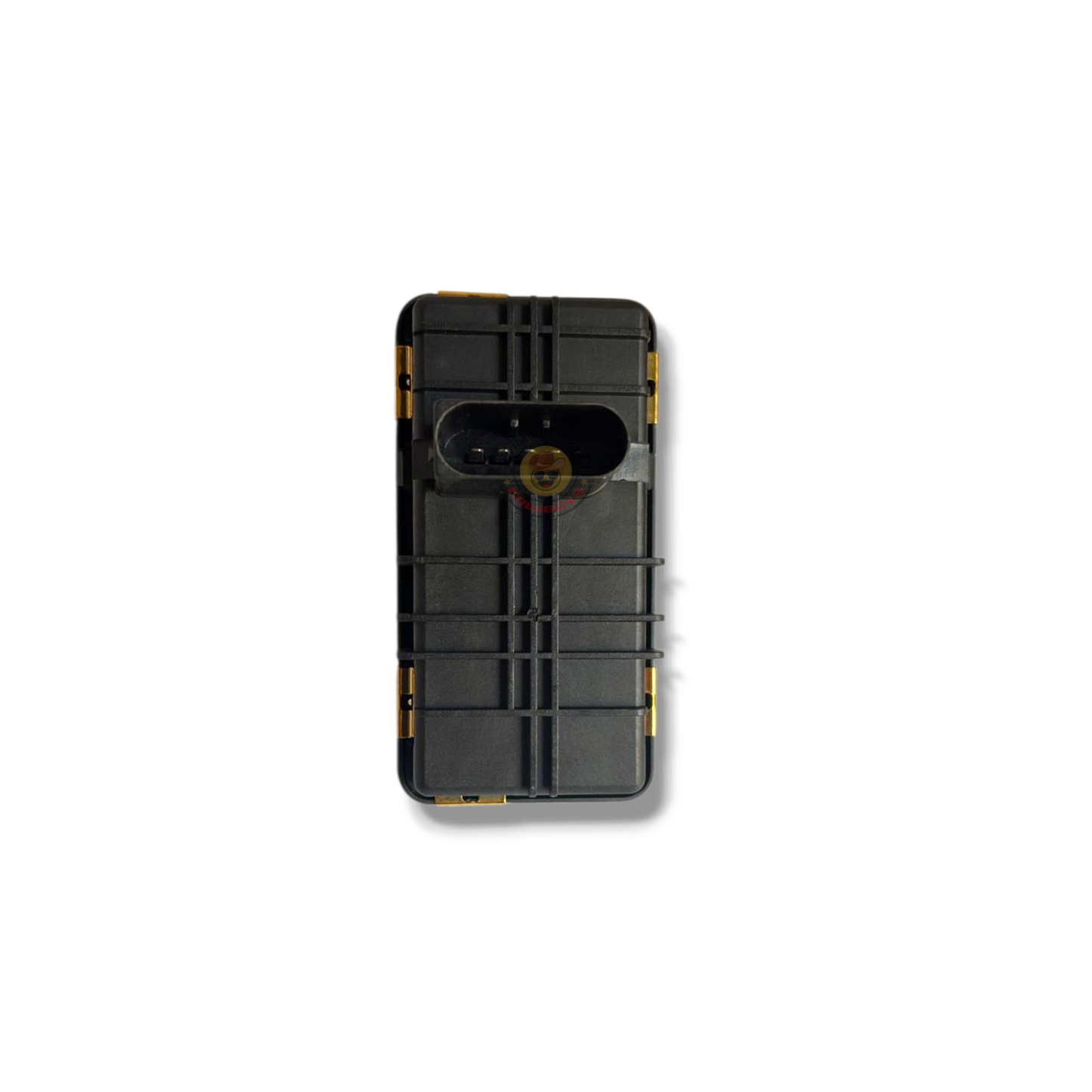

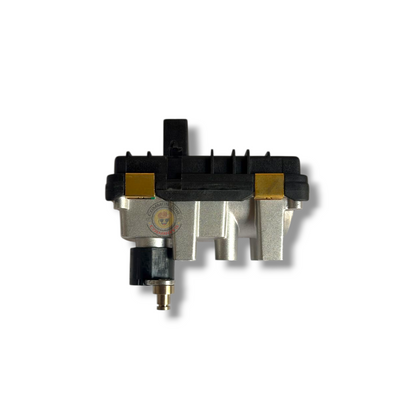

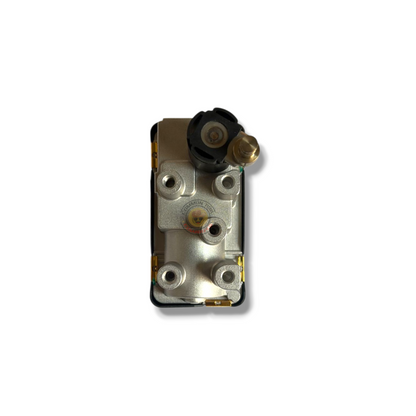

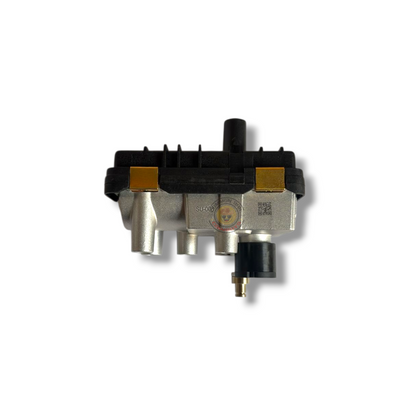

The electronic VNT actuator for the Garrett GTD2056V / GTD2056VZK turbo fitted to the 3.2L P5AT DuraTorq in the Ford Ranger PX2 and PX3, Ford Everest UA and Mazda BT-50 UR. This is the most common 3.2L actuator in the Australian fleet and the one behind most late-model Ranger limp mode complaints.
The usual pattern is limp mode, under-boost or over-boost while the turbo itself is mechanically fine: no shaft play, no oil leak, no whine. If the turbo spins clean and the scan tool is throwing an actuator or boost control fault, replacing the stepper motor on its own is the fix.
Specifications
| SU-008 Electronic Turbo Actuator | |
|---|---|
| Actuator code | SU-008 |
| Hella reference | 6NW010430 (-29 / -75) |
| Garrett actuator no. | 797863-0072 |
| Turbo models | GTD2056V / GTD2056VZK |
| Engine | P5AT DuraTorq TDCi 3.2L 5-cylinder |
| Type | Electronic VNT stepper motor, plug-in |
| In the box | 1 x electronic actuator with connecting rod |
| Calibration | May be required after fitting |
Vehicle Fitment Guide
| Vehicle | Engine | Build |
|---|---|---|
| Ford Ranger PX2 | P5AT 3.2L | 06/2015 to 08/2018 |
| Ford Ranger PX3 | P5AT 3.2L | 08/2018 to 2022 |
| Ford Everest UA / UA II | P5AT 3.2L | 10/2015 to 2022 |
| Mazda BT-50 UR | P5AT 3.2L | 09/2015 to 06/2020 |
This actuator does not suit Ranger PX1 or Mazda BT-50 UP, and does not suit any 2.2L P4AT application.
Years are a guide only. Confirm against the turbo part number before ordering.
Garrett Turbo Part Number Cross Reference
If the number on your turbo ID plate appears below, this is the correct actuator.
| GTD2056V / GTD2056VZK | ||
|---|---|---|
| 822182-0004 | 822182-4 | 822182-5004 |
| 822182-5004S | 822182-0005 | 822182-5 |
| 822182-5005 | 822182-5005S | 822182-0007 |
| 822182-7 | 822182-5007 | 822182-5007S |
| 822182-0008 | 822182-8 | 822182-5008S |
| 822182-0009 | 822182-9 | 822182-5009 |
| 822182-5009S | 822182-0010 | 822182-10 |
| 822182-5010 | 822182-5010S | 822182-0011 |
| 822182-11 | 822182-5011 | 822182-5011S |
| 822182-0014 | 822182-14 | 822182-5014 |
| 822182-5014S | 889939-0001 | 889939-1 |
| 889939-5001 | 889939-5001S | 889939-5001W |
OEM Ford and Mazda Cross Reference
| Ford | Hyphenated |
|---|---|
| FB3Q6K682DB | FB3Q-6K682-DB |
| FB3Q6K682DD | FB3Q-6K682-DD |
| FB3Q6K682DE | FB3Q-6K682-DE |
| FB3Q6K682DF | FB3Q-6K682-DF |
| FB3Q6K682PA | FB3Q-6K682-PA |
| FB3Q6K682PB | FB3Q-6K682-PB |
| FB3Q6K682PC | FB3Q-6K682-PC |
| FB3Q6K682PD | FB3Q-6K682-PD |
| FB3Q6K682PE | FB3Q-6K682-PE |
| FB3Z6K682R | FB3Z-6K682-R |
| FB3Z6K682T | FB3Z-6K682-T |
OEM numbers are listed for identification purposes only.
Wrong Actuator? Find the Right One
These four actuators look similar and are not interchangeable. Match your turbo number to the right listing:
- 822182 / 889939 (3.2L PX2, PX3, Everest, BT-50 UR) is this listing
- 798166 / 812971 / 853333 (3.2L PX1, BT-50 UP) needs the G-74 actuator
- 787556 / 854800 (2.2L PX1, BT-50 UP and UR) needs the G-88 actuator
- 831157 / 889938 (2.2L PX2, PX3, Everest) needs the SU-001 actuator
Not sure? Send us your turbo ID plate number or your rego and state and we will confirm it for you.
Installation and Calibration Notes
- Electronic actuators may require calibration after installation. Have a scan tool and the correct procedure ready before you start.
- Skipping calibration can leave the vehicle in limp mode or throw boost control faults even with a good actuator fitted.
- Set the linkage to the same effective length as the unit coming off before final tightening.
- Always confirm the turbo ID before ordering. Fitting an actuator calibrated for a different turbo can cause over-boost or under-boost.
- Professional installation is recommended.
