NPC 1600Nm Super Heavy Duty Clutch and Billet Flywheel Kit NPC7751-1D/1 | Toyota LandCruiser 76/78/79 Series 1VD-FTV
NPC 1600Nm Super Heavy Duty Clutch and Billet Flywheel Kit NPC7751-1D/1 | Toyota LandCruiser 76/78/79 Series 1VD-FTV
Taxes included. Shipping calculated at checkout.
Couldn't load pickup availability
NPC 1600Nm Super Heavy Duty Clutch and Billet Flywheel Kit
NPC7751-1D/1 | Toyota LandCruiser VDJ76 / VDJ78 / VDJ79 1VD-FTV V8 | Concentric Slave Cylinder Included
The top of the NPC 70 Series range. A 325mm organic disc, the biggest NPC put behind a 1VD, on an NPC-modified high clamp cover and a dedicated billet steel flywheel, with a new concentric slave cylinder in the box. NPC's calculated maximum is 1600Nm at the flywheel. Built for turbo and injector upgrades, GVM upgrades and heavy towing on serious power, and still an organic disc, so it engages like a clutch and not a light switch.
Fitment
| Vehicle | Chassis | Engine | Build dates |
|---|---|---|---|
| Toyota LandCruiser 79 Series ute | VDJ79 | 1VD-FTV 4.5L V8, manual | 2007 on |
| Toyota LandCruiser 78 Series Troop Carrier | VDJ78 | 1VD-FTV 4.5L V8, manual | 2007 on |
| Toyota LandCruiser 76 Series wagon | VDJ76 | 1VD-FTV 4.5L V8, manual | 2007 on |
Pre-DPF and DPF 1VD both covered. Not sure? Add your VIN or State and Rego to the order notes and we will confirm before dispatch.
NPC Specification
| Part number | NPC7751-1D/1 |
| Type | Super Heavy Duty organic |
| Clutch plate | 325 x 32.4 x 14T |
| Flywheel | NPC billet steel, single mass, included. Must be fitted as a set with this cover and disc |
| Calculated maximum dyno figure at the flywheel | 1600Nm |
| Clamp | 20 to 45% above factory specification |
| Concentric slave cylinder | Included, new |
| Spigot bearing, aligning tool | Included |
Specification per NPC Performance Clutches, current at September 2026.

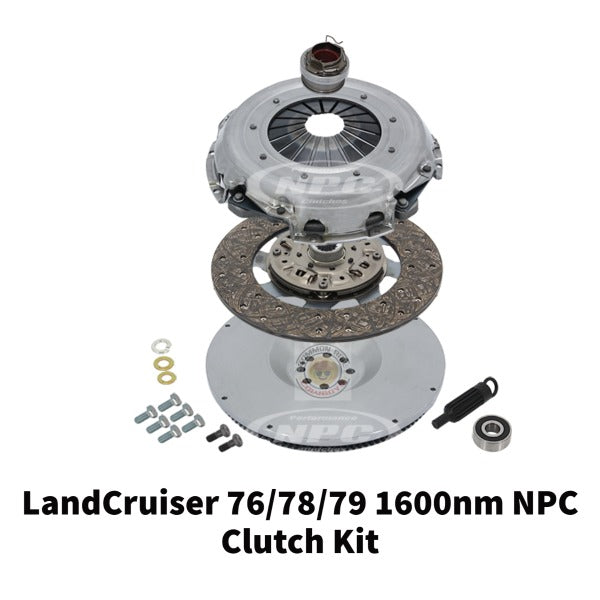

What's in the Box
- NPC Super Heavy Duty 325mm organic clutch disc
- NPC-modified high clamp pressure plate
- NPC billet steel flywheel, machined and ready to fit
- New concentric slave cylinder (release bearing)
- Spigot bearing
- Clutch aligning tool
1300 or 1600?
| Kit | NPC rating | Disc | Build |
|---|---|---|---|
| NPC7751-1D | 1300Nm | 300mm organic | Exhaust and tune, towing, touring on the factory turbo |
| NPC7751-1D/1 (this kit) | 1600Nm | 325mm organic | Turbo and injector upgrades, GVM upgrades, heavy towing on serious power. New slave cylinder included |
Rule of thumb: a GCG Stage 3 or Garrett PowerMax with +30 or +60 injectors, or a GVM-upgraded truck that tows at its limit, is 1600 territory. Factory turbo with a tune, the 1300 will do it. Unsure? Message us with your mods and what you tow.
Braided Clutch Line
The 70 Series has a hydraulic accumulator in the clutch line. Bypassing it with a braided line removes fluid dampening for a more direct pedal and sharper engagement. NPC offer it as an optional extra; message us to add one.
Fitting and Bed-In
- Fit to NPC's standard. NPC publish fitting sheets on their Resources page. Before fitting, trial the disc on the gearbox spline and check cover and release bearing height.
- The supplied billet flywheel comes machined and ready to fit. Fit the kit as a set; do not mix this cover and disc with the factory flywheel.
- Fit the supplied slave cylinder and bleed the system properly. Inspect the fork, pivot and rear main seal while the gearbox is out.
- Bed in for 1,000 km of normal driving. It is the gear changes that bed it in. No burnouts, flat changes or towing until then.
What to Expect
- Pedal: firmer than factory. NPC keep it manageable for a daily-driven and towing Cruiser despite the rating.
- Rated capacity assumes a healthy drivetrain, correct fitment and a sensible tune.
- Some setups show light gear rattle at idle with a single mass billet flywheel. Normal.
- NPC warranty excludes shudder, slip, pedal feel and harsh engagement on vehicles outside original specification, which is every vehicle this kit goes into. Fit it properly and bed it in.
Shipping, Payment and Warranty
- Free express depot-to-depot shipping Australia wide. Heavy item, ships via depot freight. Home delivery available on request.
- Buy now, pay later. Afterpay, Humm, Klarna and Zip.
- 12 months or 20,000 km NPC warranty against faulty materials and workmanship, conditions apply. See our Refund, Returns and Warranty Policy.
- Usually dispatches same or next business day.
Frequently Asked Questions
Q: What is it rated to?
A: NPC's calculated maximum is 1600Nm at the flywheel.
Q: Is the slave cylinder really included?
A: Yes. NPC supply a new concentric slave cylinder with the 1D/1 kit, so the hydraulic side is fresh from day one.
Q: Does it use my factory flywheel?
A: No. The NPC billet steel flywheel is included and the kit must be fitted as a set with it.
Q: Will the pedal be heavy?
A: Firmer than stock. NPC keep it manageable, and it is still an organic disc, so engagement stays progressive.
Q: Is it suitable for towing and GVM upgrades?
A: Yes, that is what it is for. Bed it in first and gear the truck properly.
1600Nm. 325mm Disc. Slave Cylinder in the Box.
NPC7751-1D/1 Super Heavy Duty clutch and flywheel for the serious VDJ76, VDJ78 and VDJ79. Free express shipping Australia wide.
Disclaimer: Common Rail Cowboys is not affiliated with Toyota Motor Corporation. Installation by a qualified technician to NPC's standard. Fitment verification is the buyer's responsibility.
